10 Best Wire Harness Tubes for Protecting Cables — Durable, Flexible, and Easy to Install
You can protect cable bundles with split looms and woven sleeves like the 1/4″ Wire Loom (16.5 ft, 1/4″ ID), CrocSee flame-retardant split loom (25 ft, 1/2″ ID, installation tool), Seismic Audio expandable sleeve (50 ft, expands 1.5x), Alex Tech split looms (10 ft, 1/2″ and 25 ft, 1/4″), and uxcell PVC tubing (10 ft, 1/4″ ID). Cut to length, open the slit, insert wires, and secure with zip ties every 6–12 inches, and you’ll see more application tips ahead.
Key Takeaways
- Choose tubing material (polyethylene, polypropylene, woven sleeve, or PVC) based on abrasion, chemical and temperature resistance needs.
- Match inner diameter to the cable bundle plus slack to avoid compression or difficulty inserting wires.
- Prioritize split or expandable sleeves for easy retrofitting and quick cable additions or removals.
- Check operating temperature ratings and allow a 10–20°F safety margin for automotive or high-heat applications.
- Use zip ties, heat-shrink ends, or end caps to secure terminations and prevent fraying or dirt ingress.
1/4 Inch Wire Loom Split Tubing Cord Protector (16.5ft)
1/4 Inch Wire Loom Split Tubing - 16.5ft Cord Protector Electric Wires Covers, Automotive Wire...
- Split loom Size: Inner diameter: 1/4"| Length: 33 Feet | Color: Black. Our split loom is split and easy to put wires in.
- High Quality: Our wire loom is made of 100% new and high-quality polyethylene. Wire protector tubing operating temp (degree F.):-94 to 257; Can be used to protect...
- Protect Your Wires: Resistant to abrasion, corrosion, oil, and other harmful chemicals. Install our cord cover will prevent cable wear and prevent pets from chewing on...
You may be interested
If you need a slim, durable sleeve for small cables, the 1/4 Inch Wire Loom Split Tubing is a strong choice for home or automotive use. You get 16.5 ft of black tubing with a 1/4 inch inner diameter, made from 100% new polyethylene. It resists abrasion, corrosion, oil, and chemicals, and works between -94°F and 257°F. To install, cut to length, locate the longitudinal slit, and insert wires or small hoses. Use it for power cords, ethernet, and wire harnesses in engine compartments, offices, or indoors and outdoors to organize and protect cables.
Best For: DIYers and vehicle owners needing a slim, durable sleeve to organize and protect small cables and wire harnesses in home or automotive settings.
Pros:
- Made from 100% new polyethylene for durability and resistance to abrasion, oil, and chemicals.
- Wide temperature range (-94°F to 257°F) suitable for engine compartments and outdoor use.
- Easy to install—cut to length and insert wires via the longitudinal slit.
Cons:
- 1/4 inch inner diameter is limited to small cables and won’t fit larger bundles or thick power cords.
- Black color may absorb heat in direct sun, potentially warming enclosed cables.
- Split design can allow moisture or dirt ingress in very harsh environments compared with fully sealed tubing.
CrocSee Flame Retardant Split Wire Loom Tubing 25ft (1/2 inch) with Installation Tool – Black
CrocSee 25ft - 1/2 inch Flame Retardant Split Wire Loom Tubing with Installation Tool - Flexible...
- Inner Diameter: 1/2 Inch | Length: 25 Feet | Material: Thick & flame retardant POLYPROPYLENE (PP), raw material for better performance and safety
- Comes with a wire loom insertion tool, makes feeding wires through the split loom so much easier and quicker
- Operating temperature range: -22 °F to 221 °F, ideal for use on automotive, industrial, office and home applications
Choose the CrocSee Flame Retardant Split Wire Loom Tubing when you need a durable, easy-to-install protector for medium-size cable runs. You get 25 feet of 1/2 inch inner diameter polypropylene tubing rated from -22 °F to 221 °F. Use the slit design to add or remove cables without disconnecting ends. Insert wires with the included installation tool by feeding wires into the tool, aligning the slit, and sliding the tubing over the bundle. This tubing resists abrasion, chemicals, and heat, and meets flame retardant needs for automotive, industrial, office, and home use. Store away from direct UV exposure.
Best For: Ideal for DIYers, auto technicians, and facility maintenance personnel needing durable, easy-to-install protection for medium-size cable runs in automotive, industrial, office, or home environments.
Pros:
- Slit design and included installation tool allow quick addition/removal of cables without disconnecting ends.
- Thick, flame-retardant polypropylene offers excellent abrasion, chemical, and heat resistance across -22 °F to 221 °F.
- Long 25 ft length and 1/2″ inner diameter suit multiple medium-size cables and runs.
Cons:
- Polypropylene can degrade with prolonged direct UV exposure, so not ideal for constant outdoor sun exposure.
- 1/2″ inner diameter may be too small for larger cable bundles or thicker wiring harnesses.
- Split design may allow minimal ingress of dust or moisture compared with fully sealed tubing.
Seismic Audio 50 Foot Expandable Woven Cable Sleeve Tubing
Seismic Audio - EBS1250Blue- 50 Foot Blue/Black 1/2" Expandable Woven Cable Sleeve Tubing Cord Sock
- Model Number: EBS1250Blue
- Blue/Black 1/2" Expandable Woven Cable Sleeve | Expands to 1.5 times original size
- Durable and Adjustable: Provides protection for your cables and can be cut to fit the length of your application | Easy application and removal
The Seismic Audio EBS1250Blue expandable woven cable sleeve is ideal for technicians and hobbyists who need organized, protectable runs of cables up to 50 feet long; you can cut the blue/black sleeve to any length and fit it over bundles up to 1/2 inch wide. You receive model EBS1250Blue, 50 feet total length, expandable to 1.5 times width. To use, measure required length, mark, and cut with scissors. Slide sleeve over cable bundle, expand as needed to cover connectors. Trim excess and tuck ends. The durable woven material resists wear, allows easy removal, and suits multiple cable management tasks.
Best For: Technicians and hobbyists who need a durable, customizable sleeve to organize and protect cable bundles up to 50 feet in length.
Pros:
- Durable woven construction that resists wear and allows easy removal for reconfiguration.
- Expandable design (up to 1.5× width) and can be cut to any length for flexible cable bundling.
- Long 50-foot length suits large runs and multiple projects, with easy application over connectors.
Cons:
- Listed width (1/2 inch) limits how large a single bundled diameter can be without significant stretching.
- No included end caps or fasteners, so additional accessories may be needed for tidy terminations.
- Blue/black color may not match all setups or provide stealth in certain environments.
Alex Tech 10ft – 1/2 inch Split Wire Loom Tubing – Black
Alex Tech 10ft - 1/2 inch Split Wire Loom Tubing - Black
- Size: Inner diameter: 1/2"| Length: 10 Feet | Color: Black. Our wire loom is made of 100% new and high quality polyethylene
- Our split loom is split and easy to put wires in. Our split loom tubing is thick enough to provide full protection for the wires
- Operating temp (degree F.):-94 to 257 | our split wire loom is used to protect electrical wiring in industry,automotive,home & office
You’ll find Alex Tech’s 10 ft, 1/2‑inch split wire loom tubing best when you need a compact, durable sleeve to protect and organize cables in tight spaces. You can cut the 10‑foot, 0.5‑inch ID tubing to length with cable cutters. Peel the split, insert wires, and press the split closed along the run. The tubing is 100% new polyethylene, resists abrasion and chemicals, and works from -94°F to 257°F. Use it in automotive, industrial, home, or office installs. Dimensions are 11.02×11.02×0.59 inches, weight 5.6 oz, rated 4.7/5 from 21,862 reviewers.
Best For: DIYers, auto technicians, and home/office organizers who need a compact, durable split sleeve to protect and tidy wiring in tight spaces.
Pros:
- Made from 100% new polyethylene for durability and good abrasion/chemical resistance.
- Easy to use split design — peel, insert wires, and press closed; cuttable to exact lengths.
- Wide operating temperature range (-94°F to 257°F) suitable for automotive and industrial environments.
Cons:
- 1/2-inch inner diameter may be too small for large bundles or thicker cables.
- Single-color (black) limits color-coding options for complex wire runs.
- Sold as a 10 ft piece — may be more or less than needed for some projects, requiring multiple purchases or leftover material.
uxcell Black PVC Wire Harness Tubing, 1/4-inch (6mm) ID, 10ft Sleeve for Wire Protection
uxcell Black PVC Tube Wire Harness Tubing, 1/4-inch(6mm) ID 10ft Sleeve for Wire Sheathing Wire...
- 1/4“ Inner Dia , 9/32" Outer Dia Black PVC Tubing for wire sheathing
- 10ft Length Wire Harness Tubing for electrical wire protection
- Resistant to High Temperature: 221 Degrees Fahrenheit (105 Degrees Celsius). Please note that the inner diameter error range is ± 1mm
If you need a compact, heat-resistant sleeve for organizing small cables, uxcell’s black PVC tubing is a strong pick for hobbyists and technicians. You get a 1/4-inch (6mm) inner diameter, 9/32-inch outer diameter, and a 10 ft length. The PVC resists wear, insulates, and tolerates temperatures up to 221°F (105°C) without hardening. To use, cut to length, slide wires through the tube, and secure ends with heat-shrink or cable ties. Note the inner diameter error range ±1mm when fitting connectors. It suits electronics, home appliances, and machinery wire protection tasks.
Best For: hobbyists and technicians needing a compact, heat-resistant sleeve to organize and protect small cables in electronics, appliances, or machinery.
Pros:
- Durable PVC offers good insulation, flexibility, wear resistance, and toughness.
- Heat-resistant up to 221°F (105°C) and remains stable at low temperatures.
- Comes as a convenient 10 ft length with a 1/4-inch (6mm) ID suitable for small cables.
Cons:
- Inner diameter tolerance ±1mm may affect fit with tight connectors.
- PVC tubing may not provide the same abrasion or chemical resistance as specialty materials.
- Not adhesive-backed; requires separate heat-shrink or ties to secure ends.
UXCell Black PVC Wire Harness Tubing (4mm ID, 10ft)
UXCell Black PVC Tube Wire Harness Tubing, 4mm ID 10ft Sleeve for Wire Sheathing Protection
- 4mm Inner Dia, 5mm Outer Dia Black PVC Tubing for wire sheathing
- 10ft Length Wire Harness Tubing for electrical wire protection
- Resistant to High Temperature: 221 Degrees Fahrenheit (105 Degrees Celsius)
For installers who need a slim, heat-resistant sleeve, UXCell Black PVC Wire Harness Tubing fits wires with its 4 mm inner diameter and 5 mm outer diameter, sold as a 10 ft (≈3.05 m) length. You can cut to length with sharp scissors or a utility knife; measure twice, cut once. The PVC offers insulation, flexibility, wear resistance, and toughness, resisting temperatures to 221°F (105°C) and low-temperature hardening. Slide wires through the 4 mm ID for clean sheathing in electronics, home appliances, or machinery. Use adhesive-lined connectors if you need sealed joints for extra protection.
Best For: Installers and DIYers who need a slim, flexible, heat-resistant sleeve to neatly insulate and protect small-diameter wires in electronics, appliances, or machinery.
Pros:
- Good insulation and flexibility with wear resistance and toughness for durable cable protection.
- Heat-resistant to 221°F (105°C) and remains flexible at low temperatures, preventing hardening or deformation.
- Slim 4 mm ID / 5 mm OD profile in a 10 ft length is easy to cut and fits many small wire bundles.
Cons:
- PVC may not be suitable for high-voltage or specialized chemical-exposure applications.
- Not adhesive-lined — requires separate heat-shrink glue-lined connectors for sealed joints.
- 4 mm ID limits use to relatively small-diameter wires or bundles; larger cables won’t fit.
Wire Loom 1/2″ 10ft Split Wire Loom Tubing (Black)
Wire Loom 1/2 inch 10ft, YCLYC Split Loom, Cord Protectors from Pets, Wire Protector Tubing...
- Easy to Use-Split Design: A split loom makes it easier to manage wires and wiring. With the split opening of the wire cover, it is easy to insert or separate your cables...
- Superior Quality Material: Our wire loom tubing is made of excellent quality PP. Stronger, thicker, and smoother, with higher hardness, it can provide more comprehensive...
- Wide Application-More Durable Wire Protector: Better stiffness, resistance to corrosion, gasoline, oil, and other chemicals. Operating range: -40 to 257°F (-40 to...
Choose the Wire Loom 1/2” 10ft Split Loom Tubing (YCLYC) when you need a compact, durable conduit that fits tightly around smaller cable bundles and is easy to cut to exact lengths. You get 10 ft of black YCLYC split loom with a 1/2 inch (12.7 mm) inner diameter. It’s made of high-quality PE that is stronger, thicker, smoother, and has higher hardness. For installation, measure cables, cut the loom to length with scissors, open the split, insert wires, and snap closed. Use between -40 and 257°F, and replace when wear appears or pets chew through.
Best For: DIYers, automotive enthusiasts, and home or office users needing a compact, durable split conduit to protect and organize smaller cable bundles.
Pros:
- Made of high-quality PE for improved strength, thickness, smoothness, and hardness.
- Easy to cut, open, and install on existing wiring; fits tightly around smaller bundles.
- Wide temperature range (-40 to 257°F) and resistance to corrosion, gasoline, oil, and many chemicals.
Cons:
- 1/2″ inner diameter may be too small for larger cable bundles or thicker harnesses.
- Split design offers less protection than fully enclosed conduits against moisture ingress.
- Black color may absorb heat in direct sunlight and can make identifying individual cables harder.
Alex Tech 10ft – 1/2 inch Split Wire Loom Tubing – Black
Alex Tech 10ft - 1/2 inch Split Wire Loom Tubing - Black
- Size: Inner diameter: 1/2"| Length: 10 Feet | Color: Black. Our wire loom is made of 100% new and high quality polyethylene
- Our split loom is split and easy to put wires in. Our split loom tubing is thick enough to provide full protection for the wires
- Operating temp (degree F.):-94 to 257 | our split wire loom is used to protect electrical wiring in industry,automotive,home & office
Alex Tech’s 10 ft, 1/2-inch split wire loom is best when you need neat, heavy-duty protection for small bundles of cable in cars, homes, or workshops. You’ll get 10 feet of black, 1/2-inch inner diameter polyethylene tubing that resists abrasion, chemicals, and temperatures from -94°F to 257°F. Measure your cable bundle, cut to length with sharp scissors, then open the split and lay wires inside. Use zip ties at 6-12 inch intervals to secure the loom. The tubing weighs 5.6 ounces, measures 11.02 x 11.02 x 0.59 inches, and has a 4.7-star rating from 21,862 reviewers.
Best For: DIYers, auto enthusiasts, and home/office users who need durable, easy-to-install protection and organization for small to medium cable bundles.
Pros:
- Made from 100% new high-quality polyethylene for durability and abrasion/chemical resistance.
- Wide operating temperature range (-94°F to 257°F) suitable for automotive and industrial environments.
- Split design and 10 ft length make installation simple and flexible for various projects.
Cons:
- 1/2-inch inner diameter may be too small for larger cable bundles or many wires at once.
- Requires cutting and securing (e.g., zip ties) — not a tool-free, seamless sleeve solution.
- Black color limits visibility of cables inside and may not match all aesthetic preferences.
Alex Tech 25ft – 1/4 inch Split Wire Loom Tubing – Black
Alex Tech 25ft - 1/4 inch Split Wire Loom Tubing - Black
- Size: Inner diameter: 1/4"| Length: 25 Feet | Color: Black. Our wire loom is made of 100% new and high quality polyethylene
- Our split loom is split and easy to put wires in. Our split loom tubing is thick enough to provide full protection for the wires
- Operating temp (degree F.):-94 to 257 | our split wire loom is used to protect electrical wiring in industry,automotive,home & office
If you need a compact, abrasion-resistant sleeve for tight cable runs, this 25-foot, 1/4-inch split wire loom is a strong choice. You can cut the 25 ft, 1/4 in inner diameter tube to fit runs precisely. Made of 100% new polyethylene, it resists abrasion, chemicals, and operates from -94°F to 257°F. The split design lets you insert wires without disconnecting components. It’s thick enough to fully protect wires and keeps bundles neat. Use scissors to trim, route cables, then snap the split closed. Ideal for automotive, industrial, home, and office wiring applications.
Best For: Ideal for DIYers, automotive enthusiasts, and technicians needing a compact, abrasion- and chemical-resistant sleeve to organize and protect tight cable runs.
Pros:
- Durable 100% new polyethylene construction resists abrasion and chemicals.
- Split design allows easy insertion of wires without disconnecting components.
- Wide operating temperature range (-94°F to 257°F) suitable for many environments.
Cons:
- 1/4-inch inner diameter may be too small for larger cable bundles or connectors.
- Requires cutting with scissors for custom lengths, which can leave rough edges if not trimmed carefully.
- Black color may make it harder to identify individual cables without additional labeling.
1/4 Inch Wire Loom Split Tubing – 30 ft Cord Protector Flexible Automotive Wire Conduit
1/4 Inch Wire Loom Split Tubing - 30 ft Cord Protector Electric Wires Covers, Automotive Wire...
- Split loom Size: Inner diameter: 1/4"| Length: 30 Feet | Color: Black. Our split loom is split and easy to put wires in.
- High Quality: Our wire loom is made of 100% new and high-quality polyethylene. Wire protector tubing operating temp (degree F.):-94 to 257; Can be used to protect...
- Protect Your Wires: Resistant to abrasion, corrosion, oil, and other harmful chemicals. Install our cord cover will prevent cable wear and prevent pets from chewing on...
The 1/4 inch Wire Loom Split Tubing (30 ft) is ideal for DIY mechanics and home tech installers who need a slim, flexible conduit to protect small cables and hoses. You get inner diameter 1/4 inch, length 30 feet, black color, made from 100% new polyethylene, and rated for -94 to 257°F. You can cut to desired length with scissors or a utility knife. Insert wire into the longitudinal slit for quick installation. It resists abrasion, corrosion, oil, and chemicals, and prevents pet chewing. Use it in engine compartments, home, office, entertainment systems, and for small hoses.
Best For: DIY mechanics and home tech installers who need a slim, flexible conduit to protect and organize small cables and hoses in automotive and household applications.
Pros:
- Flexible, easy-to-cut split design allows quick installation without disconnecting wires.
- Durable polyethylene construction resists abrasion, oil, chemicals, and pet chewing; wide temperature range (-94 to 257°F).
- Long 30 ft length and slim 1/4″ inner diameter ideal for bundling small wires, ethernet cables, and small hoses.
Cons:
- 1/4″ inner diameter may be too small for larger cable bundles or thick harnesses.
- Split design offers less sealing against moisture compared with fully closed conduit.
- Black color may absorb heat in direct sunlight and isn’t color-coded for cable identification.

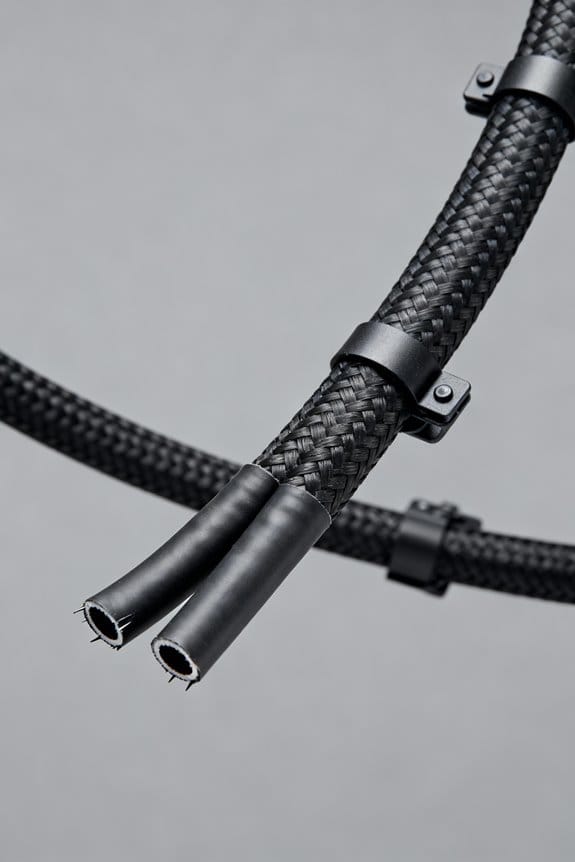

Factors to Consider When Choosing Wire Harness Tube
When choosing a wire harness tube, you’ll check material (PE, PVC, PTFE), temperature range (-40°C to 150°C), and chemical resistance ratings like SAE J200. Match tube ID to cable bundle with 1/8″–1″ inner diameters, and confirm fit by measuring cable bundle diameter with calipers to ±0.5 mm. For ease of installation, you can use split looms (product code WL-30S), cut to length with a utility knife, and secure ends with heat-shrink ID HS-12 or nylon zip ties every 6–12 inches.
Material and Composition
Although material choice may seem minor, it directly affects durability, temperature range, and safety for your wire harness. You should pick polyethylene (PE) or polypropylene (PP) for abrasion and chemical resistance. Choose flame-retardant grades, e.g., UL94 V-0 rated compounds, for automotive or industrial use. Measure tubing wall thickness: 0.5 mm gives light protection, 1.5 mm offers heavy-duty wear resistance. Use split designs (type SPL-16 or SPL-25) for easy insertion; cut to length with a utility knife, deburr ends, then slide wires in. Confirm flexibility by bending to a 90° radius equal to three times the tube diameter. Verify part codes and datasheets for chemical compatibility and mechanical specs before ordering to guarantee proper protection.
Temperature Range
Because temperature affects material performance, you should match tubing specs to your environment before ordering. Check the tube’s rated range, for example polyethylene -94°F to 257°F or polypropylene -22°F to 221°F. Identify your maximum and minimum ambient and surface temperatures, then select tubing with a margin of at least 10–20°F above those values. For automotive under-hood use, pick materials rated above 257°F or specialized high-temp sleeves like PTFE or silicone variants; note product code HTS-300 for PTFE (up to 500°F). Inspect manufacturer datasheets for thermal expansion coefficients and allowable continuous exposure hours. Install with a 0.1–0.2 inch clearance at mounting points to accommodate contraction. Document chosen part number, range, and installation gap in your assembly checklist for future maintenance.
Size and Fit
After you confirm temperature needs (for example PTFE HTS-300 to 500°F), check tube size and fit next. First, measure cable bundle diameter and select inner diameter accordingly, for example 1/4″ or 1/2″ ID. Next, choose tube length: common options include 10ft, 25ft, or 30ft reels. Verify tubing flexibility so it navigates bends without kinking; test a sample by bending to expected radius. Ascertain the material can be cleanly cut to size with shears or a utility knife. When installing, slide tubing over cables, secure ends with heat-shrink or zip ties, and leave service loops if needed. Keep a spare 1ft section for repairs. Record product codes for reordering and match ID, length, and flexibility to your run.
Chemical Resistance
When you choose wire harness tube, make sure it resists the specific chemicals present in your environment, such as engine oil, hydraulic fluid, battery acid, or cleaning solvents. You should select materials with proven chemical resistance to prevent degradation and extend wiring life. For oil-prone areas, pick polyethylene tubing like PE100, rated for hydrocarbons. In acidic zones, use PVC compound code PVC-AR1 with pH resistance to 0–14. Check the operating temperature range; for example, -40°C to 125°C tubing may become brittle if exposed to solvents at 100°C. Verify chemical resistance ratings from datasheets and compare against expected concentrations. Inspect chemical stability ratings (ASTM D543) and follow manufacturer part numbers when ordering. You can test samples for 72 hours before full installation.
Installation Ease
If you want faster, less error-prone installs, pick split tubing like PET-SS12 or PE-ES20 that opens along its length so you can lay cables in without disconnecting connectors. You should choose tubing lengths you can cut to fit; mark and cut to the nearest 5 mm for tight runs. Prefer flexible, lightweight materials rated for 8–12 mm cable bundles when routing through 20 mm conduits. Use an insertion tool like model IT-100 to push multiple wires into the split channel in one pass. Follow clear instructions: 1) measure and cut, 2) open split, 3) insert wires, 4) close and secure with a 6 mm clamp. Good instructions reduce errors and speed installs.
Safety Features
You’ve sped up installs with split tubing and proper cutting; now focus on safety features that protect wiring over time. Choose flame-retardant tubing rated to UL 94 V-0 or equivalent, so it won’t ignite under heat. Verify operating temperature range, ideally -94°F to 257°F (‑70°C to 125°C) or higher for extreme use. Select polyethylene (PE) or polypropylene (PP) materials for good electrical insulation and wear resistance. Pick abrasion-, corrosion-, and chemical-resistant grades; look for specs like SAE J512 or MIL‑W‑22759. For pet protection, use thick-wall tubing, 3 mm minimum wall, or braided sleeving with outer PET weave. Inspect product code and datasheet, then install: cut to length, deburr, slide over harness, and secure with heat-shrink or UV-resistant zip ties every 12 in (30 cm).
Frequently Asked Questions
Can Wire Harness Tubes Protect Against Rodents Chewing Cables?
Yes, you can reduce rodent chewing with metal braid or stainless-steel spiral wrap. Use 1/4″ (6 mm) or 3/8″ (10 mm) ID braid, product code MB-06 or MB-10, cut to length. Slide tubes over cables, secure ends with 1/4″ (6 mm) stainless hose clamps, torque 2–3 in·lb. For extra protection, add 0.5 mm aluminum tape and mount cables 6–12 inches off the ground. Inspect monthly for damage.
Can Tubes Be Used Outdoors in Prolonged Sunlight Exposure?
Like a sunscreen for cables, you can use UV-stable tubes outdoors. Choose polyethylene (PE) or UV-stabilized PVC, e.g., PE corrugated tube ID 10 mm, OD 14 mm, product code PE-10UV. Cut to length with a 150 mm hacksaw, deburr edges, and secure with stainless steel 1/4″ worm clamps every 300 mm. For direct sun over 5 years, select UV rating >5000 hours and replace every 3–5 years.
How Do I Join Two Different Tube Types Together Securely?
You join different tube types using a mechanical adapter, adhesive, and heat shrink. Cut tubes square at 45 mm overlap, insert a 20 mm long nylon coupler (Part PN-ADP20), secure with Loctite 406 in 1–2 mm bead, then slide 50 mm of 3:1 heat shrink (HS-3:1-50) over joint. Apply heat at 120°C for 60 seconds. Inspect for gaps, test pull strength to 50 N before final use.
Are There Temperature Limits for Routing Near Engine Components?
Think of heat like a moving wall; you can’t cross safe limits. You can route near engines if tubing tolerates temperatures above 200°C. Use PTFE sleeve (MIL‑T‑9040, −60°C to +260°C) or silicone fiberglass braid (MG‑SIL‑200, −40°C to +250°C). Keep 25 mm clearance from exhaust, secure with stainless clamps every 150 mm, and use heat shield tape (HT‑TAPE‑500, 0.5 mm) on exposed sections before final routing.
Can Colored Tubing Be Used for Circuit Identification?
Yes, you can use colored tubing for circuit identification. Use 1/4″ (6 mm) PET spiral wrap part SPW-06 or 3/16″ (4 mm) heat-shrink tubing, code HS-0415, for small harnesses. Cut to 2–3 inch (50–75 mm) lengths, slide over wires, and secure with 3 mm nylon cable ties or 2 mm adhesive heat-shrink glue. Label ends with 1/8″ (3 mm) vinyl tape, part VT-03, using permanent marker.
